Hikvision

Specifications

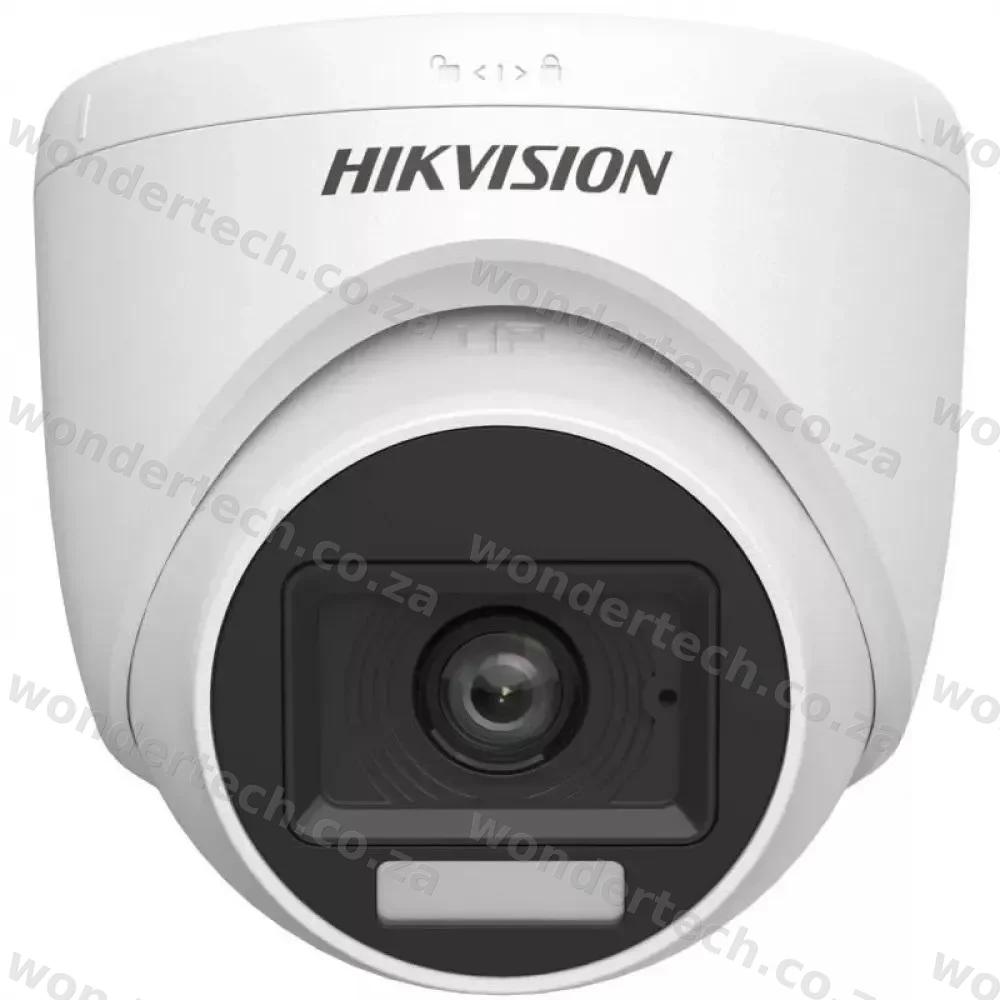

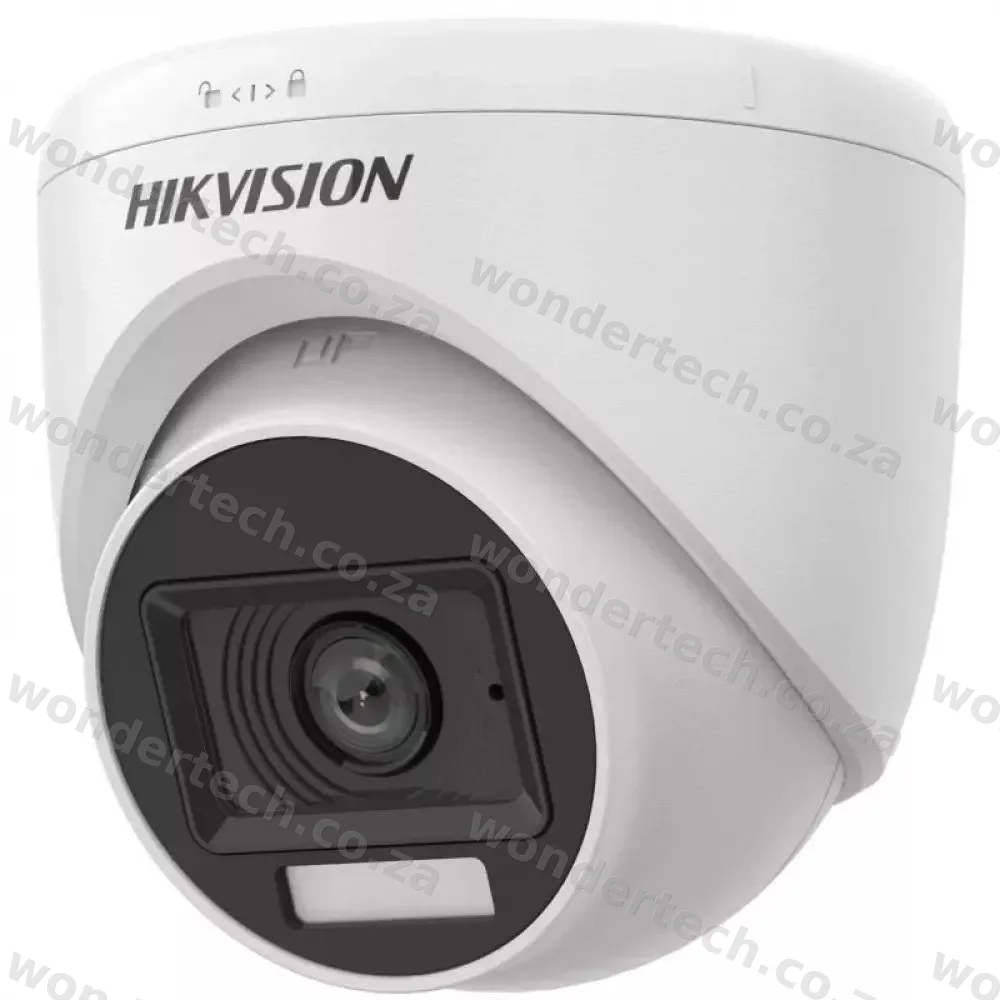

2 MP Smart Hybrid Light With ColorVu Indoor Fixed Turret Camera

High-Quality Imaging With 2 MP, 1920 × 1080 Resolution

24/7 Color Imaging With F1.0 Aperture

Smart-Hybrid Light, Optimize Our Security With Flexible Lighting Options

3D DNR Technology Delivers Clean And Sharp Images

2.8 mm, 3.6 mm Fixed Focal Lens

Up To 20 m White Light Distance For Bright Night Imaging

Up To 20 m IR Distance For Bright Night Imaging

High-Quality Audio With Audio Over Coaxial Cable, Built-In Mic

Camera

Image Sensor: 2 MP CMOS

Max. Resolution: 1920 (H) × 1080 (V)

Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux With White Light

Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s

Day & Night: ICR

Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Signal System: PAL/NTSC

Lens

Lens Type: 2.8 mm and 3.6 mm Fixed Focal Lens

Focal Length & FOV

2.8 mm, Horizontal FOV: 105°, Vertical FOV: 56°, Diagonal FOV: 126°

3.6 mm, Horizontal FOV: 84°, Vertical FOV: 46°, Diagonal FOV: 98°

Lens Mount: M12

Microphone

Pickup Distance: In a Radius Of Up To 5 m

Amount: 1

Illuminator

Supplement Light Type: Smart, IR, White Light

Supplement Light Range IR: Up To 20 m, White Light: Up To 20 m


Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT

Image Settings: Brightness, Sharpness, Anti-banding, AGC

Frame Rate

TVI: 1080p @25 fps/30 fps

CVI: 1080p @25 fps/30 fps

AHD: 1080p @25 fps/30 fps

CVBS: PAL/NTSC

Day / Night Mode: Auto / Color

Wide Dynamic Range (WDR): Digital WDR

Noise Reduction: 3D DNR / 2D DNR

Image Enhancement

DWDR

BLC

HLC

Global

White Balance: Auto, Manual

Interface

Video Output: Switchable TVI / AHD / CVI / CVBS

General

Material: Plastic

Power: 12 VDC ± 25%, Max. 2.9 W

*You Are Recommended To use One Power Adapter To Supply The Power For One Camera*

Dimension: Ø85.02 mm × 81.25 mm (Ø3.35 × 3.2)

Approx. 155 g (0.34 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F)

Humidity 90% Or Less (Non-Condensing)

Communication: HIKVISION-C

Language: English
