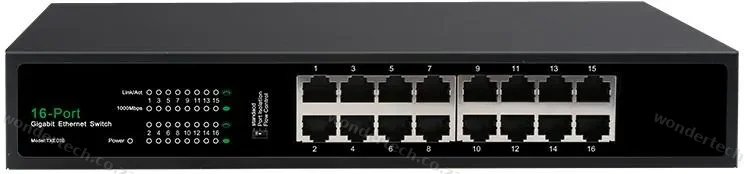

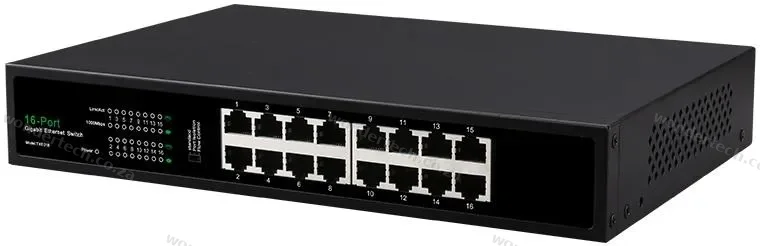

16 PORT GIGABIT SWITCH - TXE018

16 Ports 10/100/1000Mbps Unmanaged Ethernet Switch

Hardware Specification

Model Name: TXE241

Chipset: EN8853D+EN8808Q

Standards and Protocols

IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x

Interface: 16 x 10/100/1000Mbps Auto-Negotiation Ports

Network Media

10Base-T: UTP Category 3, 4, 5 Cable (Maximum 100m)

100Base-Tx: UTP Category 5, 5e Cable (Maximum 100m)

1000Base-T: UTP Category 5, 5e Cable (Maximum 100m)

Transfer Method: Store-And-Forward

MAC Address Table: 8K

Switching Capacity:  56Gbps

Packet Forwarding Rate: 23.8Mpps

Packet Buffer: 4Mbits

Jumbo Frame: 15Kbytes

Operation Mode

VLAN OFF:  All Ports Can Communicate Normally

VLAN ON: Ports 1 - 7 Of The Switch Can Only Communicate With The Uplink Port

And Ports 1 - 7 Cannot Communicate With Each Other

Indicators

Per Device: Power (Green) VLAN (Green)

Per Port: Link/Activity (Green)

Power Supply: DC:5V/1A

Power Consumption: 6.3W(MAX.)

Dimensions (W x D x H): 238.7 x 89.5 x 21mm

Environment

Operating Temperature: 0 - 40

Storage Temperature: -40- 70

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing
