10AMP CCTV PSU - 10APSU

A 10Amp (10A) CCTV Power Supply Unit (PSU)

Often Referred To As A 10APSU or 12V 10A 9-Channel Distribution Box

Is a centralized, regulated Power Source Designed for Surveillance Systems

These Units are typically used to Power Multiple Cameras from a Single Location

Key Features and Specifications

Output Power: 12V DC, 10 Amp Total Output

Channels: Commonly Features 9, 10, Or Up To 16 Channels

Allowing For The Connection Of Multiple Cameras

Protection: Equipped with PTC (Positive Temperature Coefficient)

Fuses for Self-Recovery or individual Glass Fuses to prevent Over-Voltage, Short Circuits, and Overload

Input Voltage: Supports 100-240VAC Or 110-220VAC (50/60Hz)

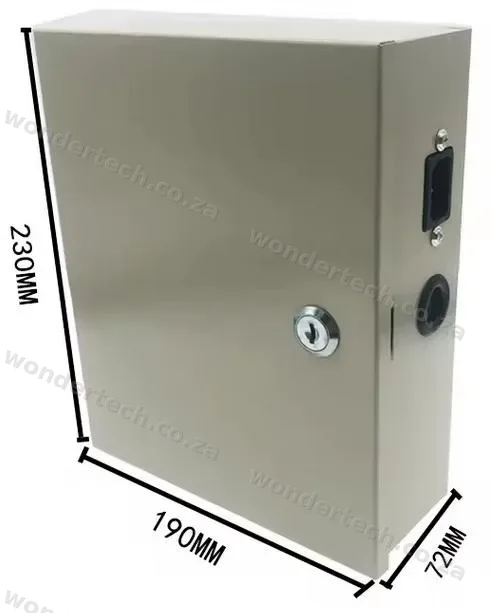

Design: Often Housed in a Lockable Metal Box with an Epoxy-Coated Finish

Optional Backup: Some Models include Battery Backup Functionality

Often Supporting a 7.2Ah/8Ah or 17Ah Battery for continued Operation during Power Failures

Included Accessories: Usually comes with a 3-Pin South African (SA) Plug Lead

Common Applications

CCTV Systems: Centralized Power For Up To 9-16 Cameras

Security Systems: Access Control And Alarm Systems

Low Voltage Devices: LED strips and other 12V Equipment

Benefits

Reliability: Provides a Stable, Regulated 12V DC Power Source, reducing Camera Failure

Safety: Built-In Protection against Electrical Surges and Faults

Convenience: Simplifies Installation by Centralizing Power Management

Battery Included
